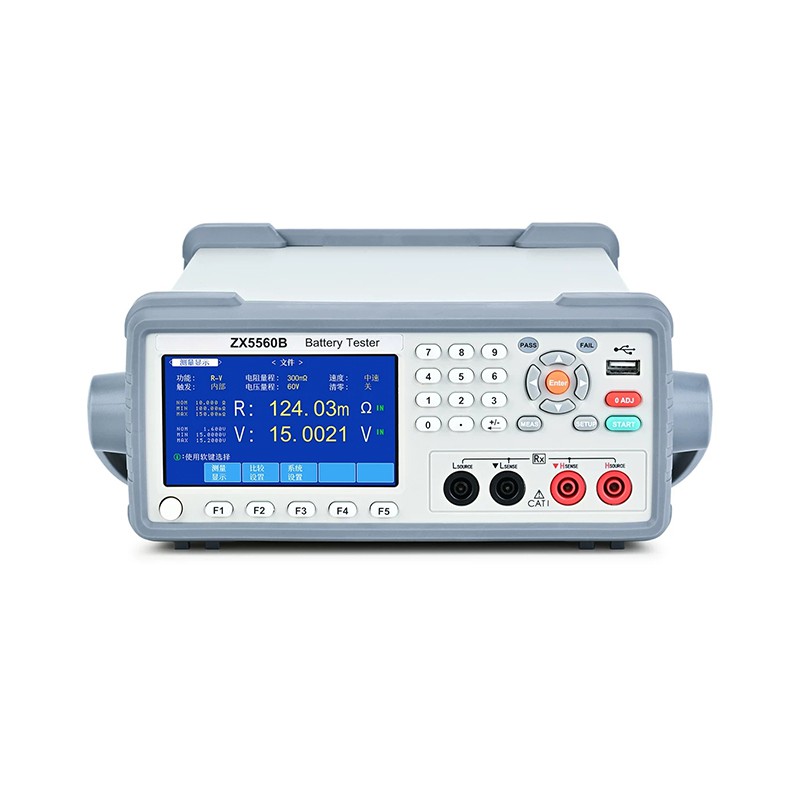

4.3-inch color LCD screen displaying battery internal resistance R and voltage V simultaneously ● Minimum Resolution: 0.1μΩ, 10μV ● High precision, good stability, fastest test speed up to 100 readings/sec ● Test lead contact check function | ● Built-in comparator function, 10-bin sorting (optional) ● Standard RS232 (optional RS485) communication interface, supporting SCPI and Modbus (RTU) protocols ● Test conditions automatically saved: 50 groups internally, 500 setup files on USB flash drive ● Patented technology: direct upload of test results to PC without software installation |
◆ Measurement Abnormality Check
Detects poor contact or broken test leads, improving measurement reliability.
◆ Averaging Function
Averaging from 2 to 16 readings reduces instability, allowing for reliable measurements.

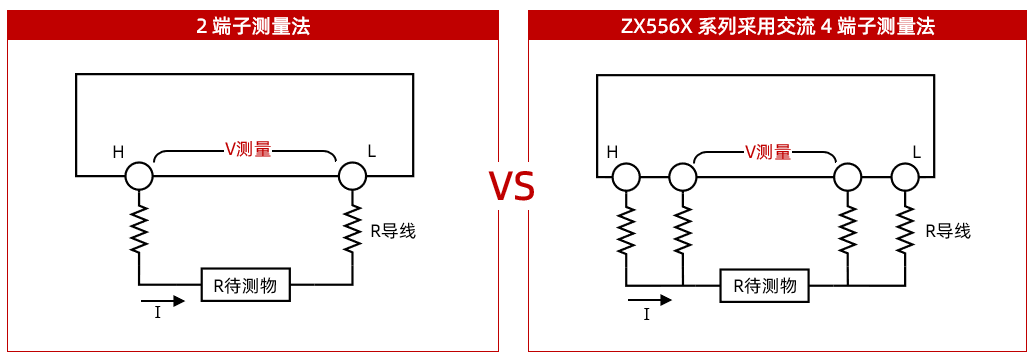

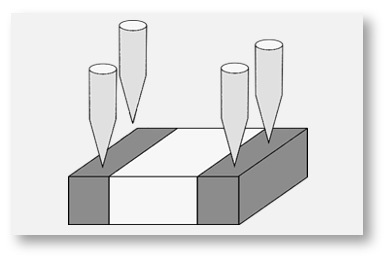

◆ AC 4-Terminal Method
Impedance is measured using the AC 4-terminal method, ensuring that the measurement is unaffected by the impedance of the test leads.
◆ Simultaneous impedance and voltage judgment: HI/IN/LO independent judgment for impedance and voltage respectively.
◆ Supports AND logic operation of the two judgment results, outputting PASS/FAIL overall judgment.
◆ Judgment results are indicated via front panel PASS/FAIL LEDs and buzzer, and can also be output through the EXT I/O terminal.
◆ Threshold comparison methods include setting upper/lower limits and setting nominal value with tolerance range.
◆ PC Application Software
Reads test data to a computer and records it in standard spreadsheet software and CSV files.
◆ Deterioration assessment and life evaluation of alkaline batteries and lead-acid batteries
◆ UPS testing
◆ Battery factory inspection
◆ High-precision lithium battery internal resistance and voltage testing
◆ High-speed mass production spot checks of coin batteries
◆ Fuel cell stack measurement
◆ Testing of high-voltage battery packs such as lithium batteries in electric vehicles
◆ Internal resistance and voltage measurement of multi-cell series high-voltage lithium batteries
◆ Resistance and voltage measurement of hydrogen fuel cells
◆ Automated battery internal resistance and voltage testing with automatic sorting machines
◆ Battery deterioration status and life evaluation
◆ ESR testing of supercapacitors (low internal resistance capacitors)
◆ Testing of high-voltage battery packs such as lithium batteries in electric vehicles
◆ Internal resistance and voltage measurement of multi-cell series high-voltage lithium batteries
◆ Power battery internal resistance measurement

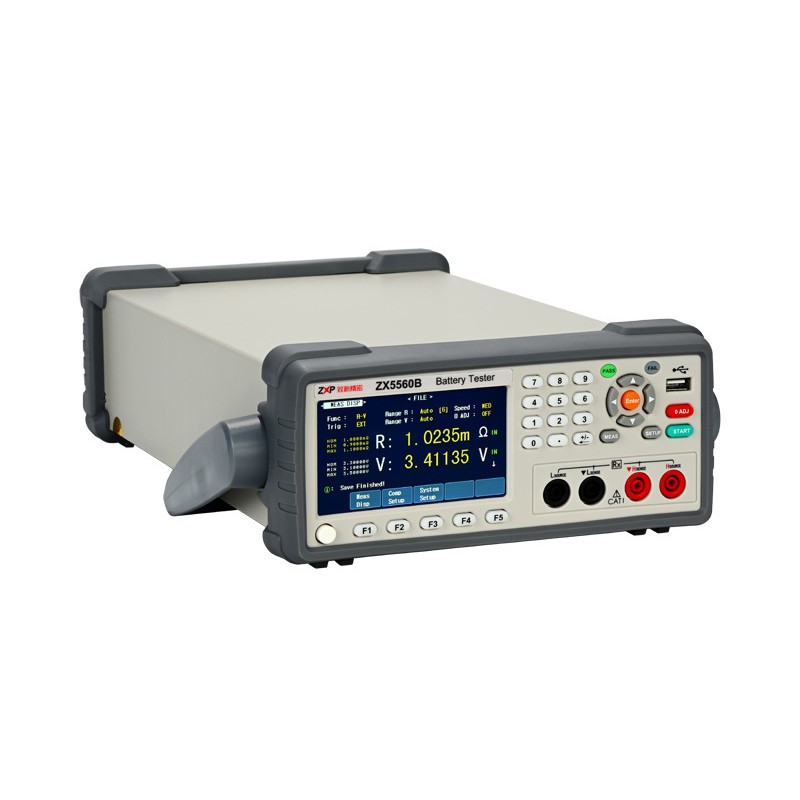

Model | ZX5560B |
|---|---|
Test Parameters | RV/R/V (R: AC Resistance, V: DC Voltage) |
Test Method | Four-terminal measurement (1 kHz) |
Max Input Voltage | Rated input voltage: 60 VDC; Max rated voltage to ground: 60 VDC. |
Resistance Measurement Range | 5 Range: 3 mΩ (Max display: 3.1000 mΩ, Resolution: 0.1 μΩ) 30 mΩ (Max display: 31.000 mΩ, Resolution: 1 μΩ) 300 mΩ (Max display: 310.00 mΩ, Resolution: 10 μΩ) 3 Ω (Max display: 3.1000 Ω, Resolution: 0.1 mΩ) 30 Ω (Max display: 31.000 Ω, Resolution: 1 mΩ) |
Resistance Measurement Accuracy | 30mΩ–30Ω Range: ±0.5% rdg. ±5 dgt. 3mΩ Range: ±0.5% rdg. ±10 dgt. |
Voltage Measurement Range | DC6V (Resolution: 10μV), DC60V (Resolution: 100μV), Two ranges switchable |
Voltage Measurement Accuracy | ±0.01% ±3 dgt. (Add ±3 dgt. for UFAST, add ±2 dgt. for FAST, add ±2 dgt. for MED) |
Sampling Time | UFAST: 4ms, FAST: 12ms, MED: 42ms, SLOW: 157ms (The above is the fastest time for one-parameter measurement at 50Hz power frequency; depends on test items and power frequency) |
Total Measurement Time | Response Time + Sampling Time (Impedance/Voltage response time approx. 1ms. For reference only; depends on test process and DUT) |
Comparator | Independent Judgment: HI/IN/LO (Voltage and impedance judged independently) Comprehensive Judgment: PASS/FAIL (AND operation of impedance judgment result and voltage judgment result), LED indication, Buzzer alarm |

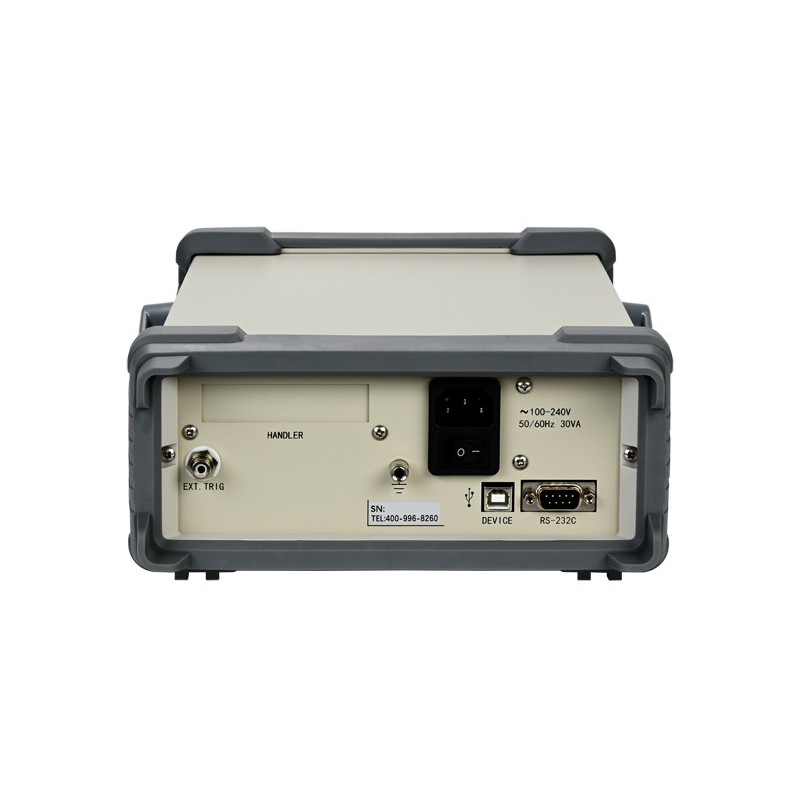

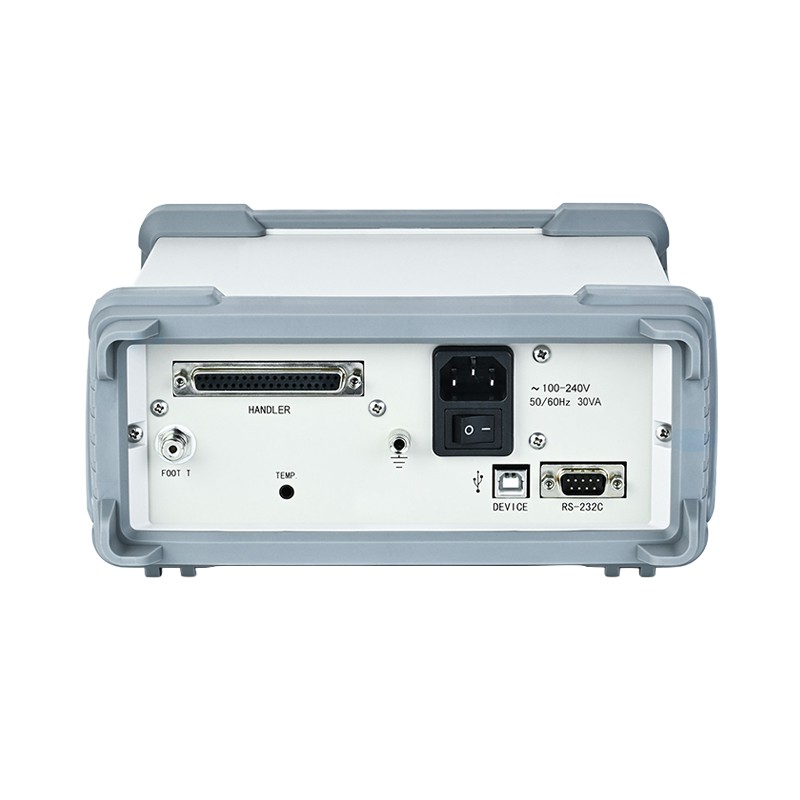

External Interface | RS-232C, USB |
Power Requirements | AC: 85–242 V, 47–63 Hz, 15 VA |
Dimensions (W×H×D) | 216 mm × 87 mm × 358.5 mm (net dimensions) 226 mm × 104.75 mm × 383.5 mm (with protective cover) |
Weight | 3.6 kg |

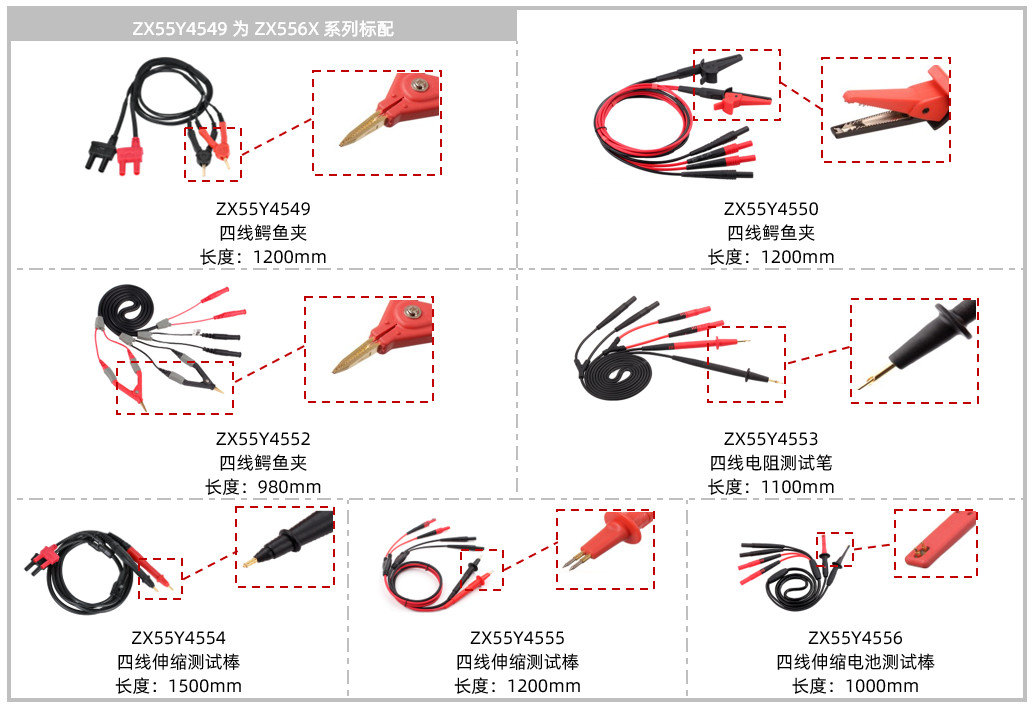

Attachment | Manual ×1, Power Cord ×1, (Test leads optional) |
